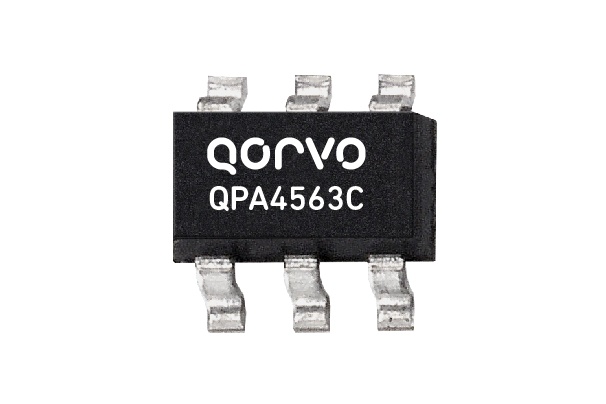

QPA4563C

Model Number: QPA4563C

Amplifier from Qorvo

Amplifier, Gain Block, 0.05 - 4 GHz, 15.2 dBm, 21.1 dB, SOT-363

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The Qorvo QPA4563C is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V supply, the QPA4563C does not require a dropping resistor as compared to typical Darlington amplifiers. The QPA4563C is designed for high linearity 3V gain block applications that require small size and minimal external components. It is internally matched to 50 ohm.

Part Number: QPA4563C
Manufacturer: Qorvo
Type: Amplifiers
Min Frequency: 0.05 GHz
Max Frequency: 4 GHz
P1dB Typ: 15.2 dBm
Gain Typ: 21.1 dB
Noise Figure Typ: 2.5 dB
Supply Voltage Nominal: 3 V
Package: SMT
Package Style: SOT-363

No Content Available

Technical Inquiry Request for QPA4563C Amplifier

Fields marked with * are required.

Product Specifications For QPA4563C Amplifier

Part Number: QPA4563C Manufacturer: Qorvo Product Description: Amplifier, Gain Block, 0.05 - 4 GHz, 15.2 dBm, 21.1 dB, SOT-363

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

3055

On Order

2000

by 11/27/2026

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$3.56

25 - 99

$2.80

100 - 249

$2.21

250 - 499

$1.82

500 - 999

$1.54

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
