QPA9121

Model Number: QPA9121

Amplifier from Qorvo

Amplifier, Driver, 2.3 to 5.0 GHz, 28 dB, 25 dBm, 5V, SMT Laminate, 3 x 3

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPA9121 is a wideband, high gain, and high peak power driver amplifier. With Qorvo’s GaAs HBT process, this amplifier provides 27dBm P3dB with 28dB gain at 2.6GHz. With a quiescent current of 95mA the part is well suited as a driver in a Tx path DPD loop, for m-MIMO applications.

The QPA9121 is internally match to 50Ω over the entire operating frequency band of 2.3-5.0 GHz and incorporates a shut-down function through the VPD pin. The amplifier has been proven to provide excellent DPD correction with 5G signals as wide as 160MHz.

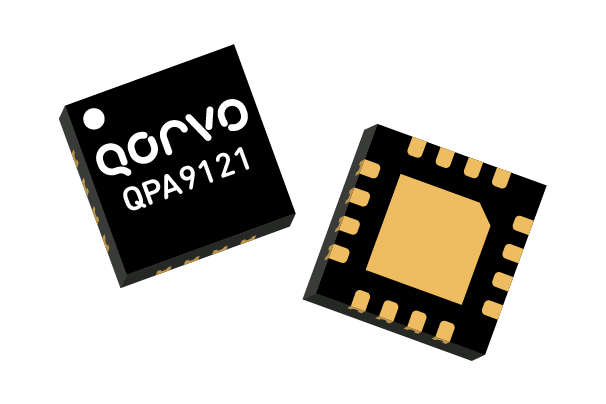

The QPA9121 is housed in a 16-pin 3X3mm SMT package and is footprint and pin-compatible to QPA9120.

Part Number: QPA9121
Manufacturer: Qorvo
Type: Amplifiers
Frequency Min: 2.3 GHz
Frequency Max: 5 GHz
P1dB: 25 dBm
Gain: 28 dB
IP3: 32 dBm
Supply Voltage \ Vd Min: 5 V
Quiescent Current \ Id: 95 mA
Noise Figure: 5 dB
Package: SMT
Return Loss Input: 10 dB
Return Loss Output: 10 dB

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	QPA9121EVB-01 Qorvo	Evaluation Board for QPA9121
Complementary Product	QPA9120 Qorvo	Amplifier, Driver, 1.8 to 5.0 GHz, 29 dB, 22 dBm, 5 V, QFN, 3 x 3 mm
Complementary Product	QPA9122 Qorvo	Amplifier, Driver, 2.3 to 5.0 GHz, 37 dB, 32 dBm, SMT Laminate, 3 x 3
Complementary Product	QPA9822 Qorvo	RF Amplifier, 3.3 to 4.2 GHz, 39 dB, 28 dBm, SMT Laminate, 3 x 3

Technical Inquiry Request for QPA9121 Amplifier

Fields marked with * are required.

Product Specifications For QPA9121 Amplifier

Part Number: QPA9121 Manufacturer: Qorvo Product Description: Amplifier, Driver, 2.3 to 5.0 GHz, 28 dB, 25 dBm, 5V, SMT Laminate, 3 x 3

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

2286

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$7.69

25 - 99

$6.04

100 - 249

$4.77

250 - 499

$3.93

500 - 999

$3.32

Request a Pricing Quote for greater quantities
