QPA9126

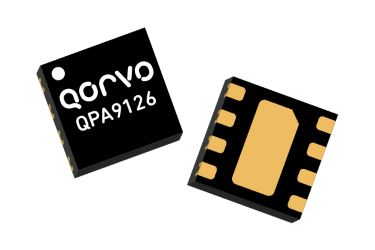

Model Number: QPA9126

Amplifier from Qorvo

Amplifier, Gain Block, 1.0 to 6.0 GHz, 16 dB, 20 dBm, DFN, 2 x 2 mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPA9126 is a cascadable, high linearity gain block amplifier in a low-cost surface mount package. At 3.5 GHz, the amplifier provides 16 dB gain, +35.5 dBm OIP3 and 1.4 dB Noise Figure while drawing 70 mA current from a 5V supply.

The QPA9126 provides very flat gain across a broad range of frequencies with the integration of a shut-down biasing capability to allow for operation for TDD applications. The low noise figure and high linearity performance allows the device to be used in both receiver and transmitter chains for high performance systems. The internal active bias circuit also enables stable operation over bias and temperature variations and can be biased from a single positive supply ranging from +3.3 to +5 volts. The amplifier is internally matched using a high-performance E-pHEMT process and is housed in a small 2 x 2 mm surface-mount package.

The QPA9126 covers the 1 – 6 GHz frequency band and is targeted for wireless infrastructure or other applications requiring high linearity and/or low noise figure.

Part Number: QPA9126
Manufacturer: Qorvo
Type: Amplifiers
Frequency Min: 1 GHz
Frequency Max: 6 GHz
P1dB: 20 dBm
Gain: 16 dB
IP3: 35 dBm
Supply Voltage \ Vd Min: 5 V
Quiescent Current \ Id: 68 mA
Noise Figure: 1.4 dB
Package: DFN 2x2mm
Gain Flatness: 0.3 ±dB
Return Loss Input: 9 dB
Return Loss Output: 12 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	QPA9126EVB-01 Qorvo	Evaluation Board for QPA9126

Technical Inquiry Request for QPA9126 Amplifier

Fields marked with * are required.

Product Specifications For QPA9126 Amplifier

Part Number: QPA9126 Manufacturer: Qorvo Product Description: Amplifier, Gain Block, 1.0 to 6.0 GHz, 16 dB, 20 dBm, DFN, 2 x 2 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

182

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$7.47

25 - 99

$5.87

100 - 249

$4.63

250 - 499

$3.82

500 - 999

$3.23

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
