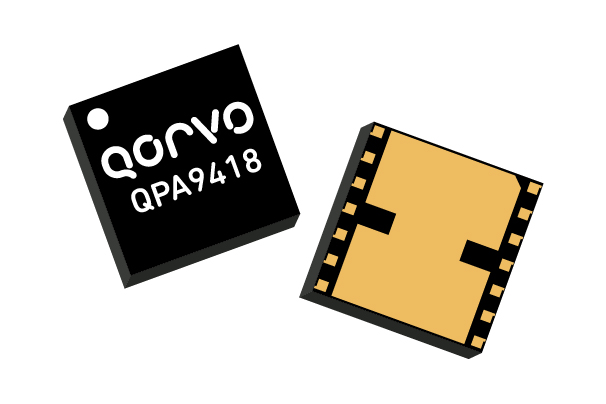

QPA9418

Model Number: QPA9418

Amplifier from Qorvo

Amplifier, Power, 1.805 to 1.88 GHz, 30.6 dB, 35.4 dBm, SMT, 7 x 7 mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPA9418 is a high-linearity two-stage power amplifier in a low-cost surface-mount package with on-chip bias control and temperature control circuits, suitable for small cell base station applications.

The QPA9418 provides 30.6 dB gain and +27 dBm linear power over the 1805 – 1930 MHz frequency range. This amplifier is able to achieve −48 dBc ACLR at +27 dBm output power using 20 MHz LTE signal.

The QPA9418 integrates two high performance amplifier stages onto a module to allow for a compact system design and requires very few external components for operation. The amplifier is bias adjustable allowing the amplifier’s power consumption to be optimized. The QPA9418 is available in a 7 x 7 mm surface mount package.

Part Number: QPA9418
Manufacturer: Qorvo
Type: RF Power MMIC
Frequency Min: 1.805 GHz
Frequency Max: 1.88 GHz
P1dB: 35.4 dBm
Gain: 30.6 dB
Supply Voltage \ Vd Min: 4.5 V
Quiescent Current \ Id: 460 mA
Package: SMT
Power Added Efficiency: 14.6 %
Return Loss Input: 20 dB
Return Loss Output: 25 dB

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	QPA9418EVB01 Qorvo	Evaluation Board for QPA9418

Technical Inquiry Request for QPA9418 Amplifier

Fields marked with * are required.

Product Specifications For QPA9418 Amplifier

Part Number: QPA9418 Manufacturer: Qorvo Product Description: Amplifier, Power, 1.805 to 1.88 GHz, 30.6 dB, 35.4 dBm, SMT, 7 x 7 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$20.50

25 - 99

$16.10

100 - 249

$12.70

250 - 499

$10.47

500 - 999

$8.86

Request a Pricing Quote for greater quantities
