Home>> Amplifier>> QPA9908

QPA9908

Model Number: QPA9908

Amplifier from Qorvo

Amplifier, Power, GaAs/InGaP,.925 to .96 GHz, 33 dB, 28 dBm, SMT,5 x 5 mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPA9908 is a high-efficiency, linearizable power amplifier targeting Band 8 small-cell wireless infrastructure systems. The product delivers high efficiency of 36% at +28dBm average output power, while providing excellent DPD linearized ACPR of -48dBc for signal bandwidths of up to 40MHz.

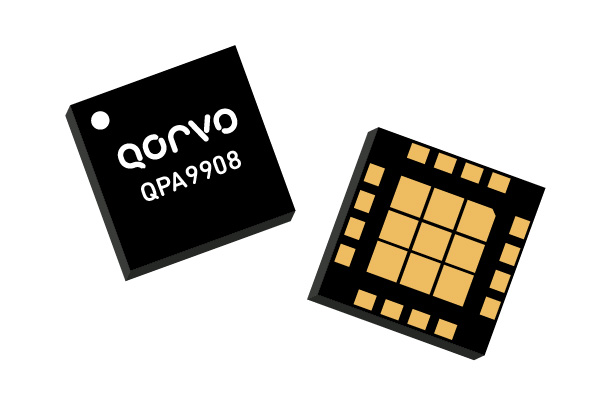

The QPA9908 is housed in a 5x5mm SMT package. It is pin-to-pin compatible to QPA9903 (band 3 high efficiency small cell PA).

Part Number: QPA9908
Manufacturer: Qorvo
Type: Amplifiers
Frequency Min: 0.925 GHz
Frequency Max: 0.96 GHz
P1dB: 28 dBm
Gain: 33 dB
IP3: 36.6 dBm
Supply Voltage \ Vd Min: 5 V
Quiescent Current \ Id: 70 mA
Package: SMT
Power Added Efficiency: 36 %
Return Loss Input: -20 dB
Return Loss Output: -4.9 dB
Process: GaAs

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	QPA9908EVB01 Qorvo	Evaluation Board for QPA9908
Complementary Product	QPA9901 Qorvo	Amplifier, 2.11 to 2.17 GHz, 36.5 dB, 28 dBm, SMT, 5 x 5 mm
Complementary Product	QPA9903 Qorvo	Amplifier, Power, GaAs, 1.805 to 1.88 GHz, 32 dB, 28 dBm, 5 x 5 mm, 16-pin, SMT
Complementary Product	QPA9907 Qorvo	RF Amplifier, Power, 2.5 to 2.7 GHz, 35 dB, 28 dBm, 5 x 5 mm
Complementary Product	QPA9909 Qorvo	RF Amplifier, .758 to .798 GHz, 31 dB, 29 dBm, 5 x 5 mm , SMT package
Complementary Product	QPA9940 Qorvo	RF Amplifier, Power, 2.3 to 2.4 GHz, 30 dB, 28 dBm, 5 x 5 mm
Complementary Product	QPA9942 Qorvo	Amplifier, InGaP/ GaAs, 3.4 to 3.710 GHz, 30 dB, 36 dBm, 16 Pad, 5 x 5 mm

Technical Inquiry Request for QPA9908 Amplifier

Fields marked with * are required.

Product Specifications For QPA9908 Amplifier

Part Number: QPA9908 Manufacturer: Qorvo Product Description: Amplifier, Power, GaAs/InGaP,.925 to .96 GHz, 33 dB, 28 dBm, SMT,5 x 5 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$18.80

25 - 99

$14.77

100 - 249

$11.65

250 - 499

$9.61

500 - 999

$8.12

Request a Pricing Quote for greater quantities
