Home>> RF Switch>> QPC6034

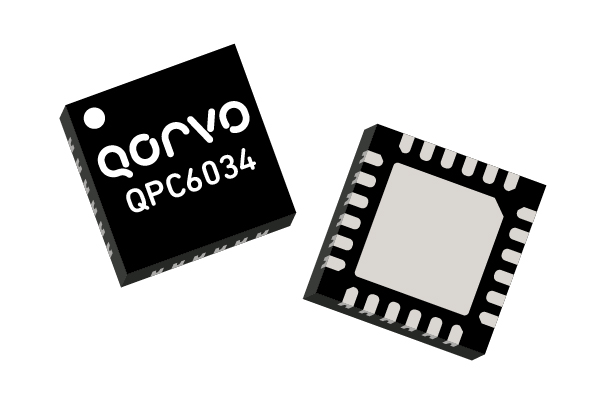

QPC6034

Model Number: QPC6034

RF Switch from Qorvo

RF Switch, SP3T, 5 - 6000 MHz,.84 - 1.00 dB IL,QFN, 24-pin, 4 x 4 mm

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Qorvo's QPC6034 is a Silicon on Insulator (SOI) single-pole, 3-throw (SP3T) switch, designed for use in cellular, 3G, LTE, and other high performance communications systems. It offers high isolation symmetric topology with excellent linearity and power handling capability. No blocking capacitors are necessary on the RF ports. The design is non-reflective such that the RFX ports are terminated into 50 Ω in the off state. QPC6034 is +1.8 V logic compatible, and incorporates a single pin to disable the internal Negative Voltage Generator (NVG) and supply a negative voltage from off-chip, if necessary.

Part Number: QPC6034
Manufacturer: Qorvo
Type >>RF Switch: Single Pole
Function: SP3T
Impedance: 50 Ohms
Frequency Range Min: 5 MHz
Frequency Range Max: 6000 MHz
Insertion Loss Min: 0.84 dB
Insertion Loss Max: 1 dB
Isolation Min: 60 dB
Isolation Max: 75 dB
Package: QFN 4x4mm
Descriptions: High Isolation

No Content Available

Part Function	Part Number	Description
Replacement	QPC6044 Qorvo	RF Switch, SP4T, 5 to 6000 MHz, 50 dB ISO, .98 dB IL, QFN, 4 x 4 mm

Technical Inquiry Request for QPC6034 RF Switch

Fields marked with * are required.

Product Specifications For QPC6034 RF Switch

Part Number: QPC6034 Manufacturer: Qorvo Product Description: RF Switch, SP3T, 5 - 6000 MHz,.84 - 1.00 dB IL,QFN, 24-pin, 4 x 4 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Pricing Available Upon Request. Request a Pricing Quote

Product Notices

No Current Notices

Description	Units Per Format	Available

Replacement Part(s) Suggested

The part QPC6034 is discontinued, below is the suggested replacement part.

Part Number	Manufacturer	Description
QPC6044	Qorvo	RF Switch, SP4T, 5 to 6000 MHz, 50 dB ISO, .98 dB IL, QFN, 4 x 4 mm

Description	Units Per Format	Available

The part QPC6034 is discontinued, would you like to check out the suggested replacement part?

Part Function	Part Number	Description
Replacement	QPC6044 Qorvo	RF Switch, SP4T, 5 to 6000 MHz, 50 dB ISO, .98 dB IL, QFN, 4 x 4 mm
