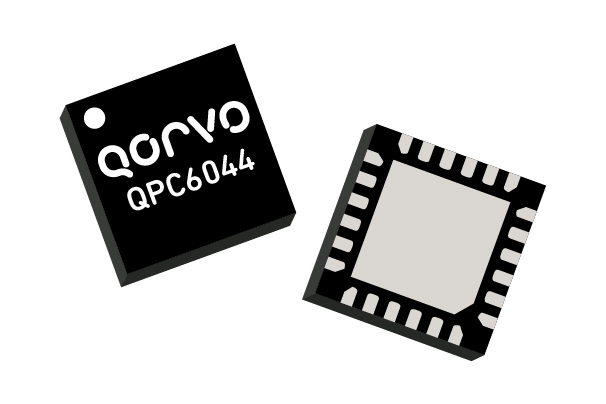

QPC6044

Model Number: QPC6044

RF Switch from Qorvo

RF Switch, SP4T, 5 to 6000 MHz, 50 dB ISO, .98 dB IL, QFN, 4 x 4 mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Qorvo's QPC6044 is a Silicon on Insulator (SOI) single-pole, 4-throw (SP4T) switch, designed for use in cellular, 3G, LTE, and other high performance communications systems. It offers high isolation symmetric topology with excellent linearity and power handling capability. No blocking capacitors are necessary on the RF ports. The design is non-reflective such that the RFX ports are terminated into 50 Ω in the off state. QPC6044 is +1.8 V logic compatible, and incorporates a single pin to disable the internal Negative Voltage Generator (NVG) and supply a negative voltage from off-chip, if necessary.

Part Number: QPC6044
Manufacturer: Qorvo
Type >>RF Switch: Single Pole
Function: SP4T (A)
Impedance: 50 Ohms
Frequency Range Min: 5 MHz
Frequency Range Max: 6000 MHz
Insertion Loss Min: 0.87 dB
Insertion Loss Max: 1.2 dB
Isolation Min: 45.5 dB
Isolation Max: 66 dB
IIP3: 35.5 dBm
Package: QFN 4x4mm
Descriptions: High Isolation

No Content Available

Technical Inquiry Request for QPC6044 RF Switch

Fields marked with * are required.

Product Specifications For QPC6044 RF Switch

Part Number: QPC6044 Manufacturer: Qorvo Product Description: RF Switch, SP4T, 5 to 6000 MHz, 50 dB ISO, .98 dB IL, QFN, 4 x 4 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

4081

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$4.86

25 - 99

$3.81

100 - 249

$3.01

250 - 499

$2.48

500 - 999

$2.10

Request a Pricing Quote for greater quantities
