Home>> RF Power Transistor>> QPD1015L

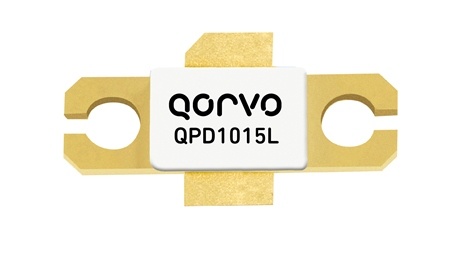

QPD1015L

Model Number: QPD1015L

RF Power Transistor from Qorvo

RF Power Transistor, DC - 3.7 GHz, 65 W, 50 V, GaN, NI--360

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPD1015L is a 65 W (P3dB) wideband unmatched discrete GaN on SiC HEMT which operates from DC to 3.7 GHz with a 50V supply rail. The device is in an industry standard air cavity package and is ideally suited for military and civilian radar, land mobile and military radio communications, avionics, and test instrumentation. The device can support pulsed, CW, and linear operation.
Lead-free and ROHS compliant

Part Number: QPD1015L
Manufacturer: Qorvo
Type: RF Power Discrete Transistors

Modelithics Simulation Model

HMT-QOR-QPD1015L-001

Part Function	Part Number	Description
Evaluation Board	QPD1015LEVB2 Qorvo	Evaluation Board for QPD1015L
Evaluation Board	QPD1015LPCB4B01 Qorvo	Evaluation Board for QPD1015L
Complementary Product	200X02R0 XSYSTOR Inc.	GaN Controller Module, 80 V Max, 300 mA Drive Current, 60 nS Rise Time, -2.0 V Shutdown Voltage
Complementary Product	620EP2R0AL50 XSYSTOR Inc.	Evaluation Board
Complementary Product	735E22R0 XSYSTOR Inc.	Evaluation Board, Controller, Switch

Technical Inquiry Request for QPD1015L RF Power Transistor

Fields marked with * are required.

Product Specifications For QPD1015L RF Power Transistor

Part Number: QPD1015L Manufacturer: Qorvo Product Description: RF Power Transistor, DC - 3.7 GHz, 65 W, 50 V, GaN, NI--360

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$308.10

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
