Home>> Front-End Module>> QPF4206B

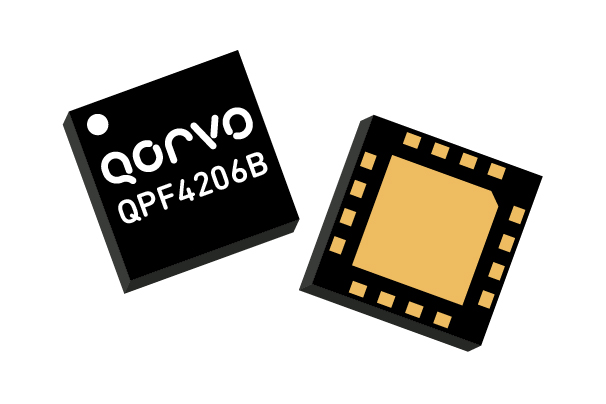

QPF4206B

Model Number: QPF4206B

Front-End Module from Qorvo

FEM, 2.4 to 2.5 GHz, 33 dB, 21 dBm, Laminate Pkg, 3.0 x 3.0

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance: Rohs Compliant

The Qorvo® QPF4206B is an integrated front end module (FEM) designed for Wi-Fi 802.11ax systems. The compact form factor and integrated matching minimizes layout area in the application. Performance is focused on optimizing the PA for a 5V supply voltage that conserves power consumption while maintaining the highest linear output power and leading edge throughput. Receive path matches the optimal technologies to maximize Rx sensitivity through noise figure performance that is consistent over a wider variety of conditions. Another key feature is the integration of a logarithmic power detector which enables power accuracy at lower powers. The QPF4206B integrates a 2 GHz power amplifier (PA), regulator, single pole two throw switch (SP2T), and a bypassable low noise amplifier (LNA).

Part Number: QPF4206B
Manufacturer: Qorvo
Sub Type: WiFi
Frequency Min: 2400 MHz
Frequency Max: 2500 MHz
Rx Gain: 15.5 dB
Rx NF: 2.1 dB
Tx Gain: 33 dB
Voltage Min: 5 V
OP1dB: 22.5 dBm

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Technical Inquiry Request for QPF4206B Front-End Module

Fields marked with * are required.

Product Specifications For QPF4206B Front-End Module

Part Number: QPF4206B Manufacturer: Qorvo Product Description: FEM, 2.4 to 2.5 GHz, 33 dB, 21 dBm, Laminate Pkg, 3.0 x 3.0

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$2.01

25 - 99

$1.82

100 - 249

$1.63

Request a Pricing Quote for greater quantities
