Home>> Front-End Module>> QPF4288

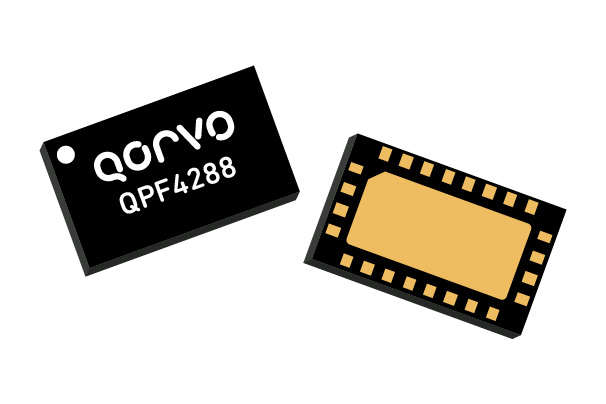

QPF4288

Model Number: QPF4288

Front-End Module from Qorvo

FEM, WiFi, 2.4 to 2.5 GHz, 33 dB Tx Gain, 15.5 Rx Gain, 24 Pin, 5 x 3 mm Laminate pkg

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The Qorvo® QPF4288 is an integrated front end module (FEM) designed for Wi-Fi 6 (802.11ax) systems. The compact form factor and integrated matching minimizes layout area in the application.

Performance is focused on optimizing the PA for a 5V supply voltage that conserves power consumption while maintaining the highest linear output power and leading edge throughput. Receive path matches the optimal technologies to maximize Rx sensitivity through noise figure performance that is consistent over a wider variety of conditions.

The receive path is pinned out so external filtering can be added in the optimal position. Integrated die level filtering for 2nd and 3rd harmonics as well as 5 GHz rejection for DBDC operation are included. There are two options for power detect, a DC power detector which has voltage output and an RF power detector with an RF output from a directional coupler.

The QPF4288 integrates a 2.4 GHz power amplifier (PA), regulator, single pole two throw switch (SP2T), bypassable low noise amplifier (LNA) and coupler into a single device.

Part Number: QPF4288
Manufacturer: Qorvo
Sub Type: WiFi
Frequency Min: 24000 MHz
Frequency Max: 25000 MHz
Rx Gain: 15.5 dB
Rx NF: 1.8 dB
Tx Gain: 33 dB
Voltage Min: 5 V
Voltage Max: 5 V
OP1dB: 32 dBm

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	QPF4288EVB-01 Qorvo	Evaluation Board for QPF4288
