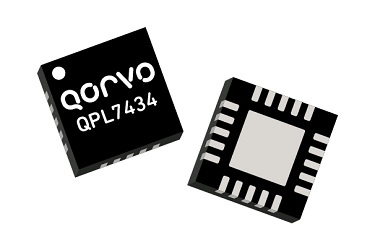

QPL7434

Model Number: ODCPROGRAM

Amplifier, Transimpedance - TI from Qorvo

TIA, xPON Video Receiver, .005 to 1.218 GHz, 27 dB, 5V, QFN-20, 4 x 4

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPB7434 is a 47 – 1218 MHz High Gain, Low EIN, Differential RF Optical Receiver for FTTH PON applications. It is a technology leader with an optical input range from -20 dBm to +2 dBm. The QPB7434, with recommended external control circuitry, provides automatic gain control to maintain a constant +24 dBmV to +29 dBmV / channel output to ensure consistent video quality. It runs on a single +5 V supply eliminating the need for an extra ONT supply.

Part Number: QPL7434
Manufacturer: Qorvo
Frequency Min: 0.047 GHz
Frequency Max: 1.218 GHz
Gain: 27 dB
Supply Voltage: 5 V
Current Consumption: 210 mA
Package: QFN-20

No Content Available

Part Function	Part Number	Description
Evaluation Board	QPL7434PCK Qorvo	Evaluation Board for QPL7434
