Home>> Amplifier>> RFFM4527

RFFM4527

Model Number: RFFM4527

Amplifier from Qorvo

Amplifier, LNA, 5.18 to 5.92 GHz, 6-Pin, DFN, 1.6 x 1.6 mm

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

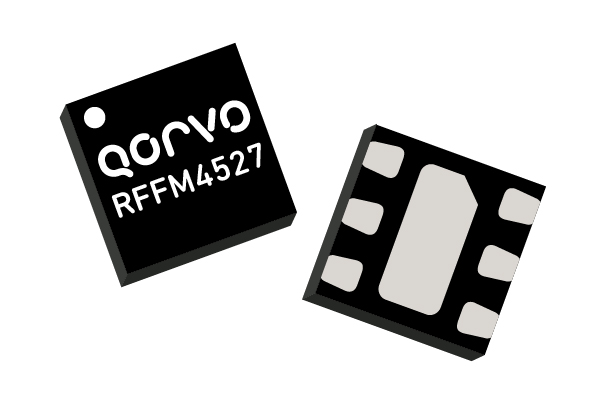

Qorvo's RFFM4527 is a low noise amplifier (LNA) designed for Wi-Fi 802.11a/n/ac systems. The integrated input and output 50Ω match minimizes layout area in the customer’s application, reduces the bill of materials and manufacturability cost. Performance is focused on a balance of low noise and gain that increases the receive sensitivity. The RFFM4527 integrates a bypass path that enables a defined gain step. The device is provided in a 1.6mm x 1.6mm x 0.5mm, 6-pin DFN package.

Part Number: RFFM4527
Manufacturer: Qorvo
Type: Amplifiers
Min Frequency: 5.18 GHz
Max Frequency: 5.925 GHz
Gain Typ: 17 dB
Noise Figure Typ: 1.6 dB
Package: SMT
Package Style: DFN

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	RFFM4527PCK-410 Qorvo	Evaluation Board for RFFM4527
