Home>> Front-End Module>> RFFM4558A

RFFM4558A

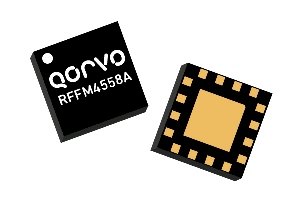

Model Number: RFFM4558A

Front-End Module from Qorvo

FEM, 4.9 to 5.925 GHz, 5 V, 14 dB RX, 32 dB TX, 20 dBm, 16 Pad, 2.5 x 2.5 Laminate

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

The Qorvo RFFM4558A provides a complete integrated solution in a single front end module (FEM) for Wi-Fi 802.11a/n/ac systems. The small form factor and integrated matching minimizes layout area in the application and greatly reduces the number of external components.
Performance is focused on conserving power consumption while maintaining the highest linear output power and leading edge throughput.
Integrated die level filtering for 2nd and 3rd harmonics as well as 2.4 GHz rejection for DBDC operation are included. The RFFM4558A integrates a 5 GHz power amplifier (PA), single pole two throw switch (SP2T) and bypassable low noise amplifier (LNA) into a single device.

Part Number: RFFM4558A
Manufacturer: Qorvo
Sub Type: FEM w/ Power Detector
Frequency Min: 4900 MHz
Frequency Max: 5925 MHz
Rx Gain: 14 dB
Rx NF: 2.5 dB
Tx Gain: 32 dB

No Content Available
