RF Power Limiter from RFuW

Limiter Module, 0.020 - 8.0 GHz, 1.4 dB IL, 20 W (CW), No internal DC Blocking Caps

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

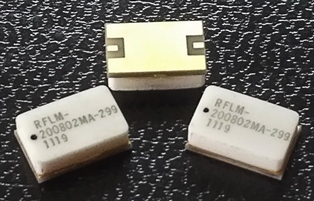

The RFuW Engineering RFLM-200802MA-299 SMT Silicon PIN Diode Limiter Module offers both High Power CW and Peak Power protection in the 20 MHz to 8 GHz frequency range. It is based on a proven hybrid assembly technique utilized extensively in high reliability, mission critical applications. The RFLM-200802MA-299 offers excellent thermal characteristics in a compact, low profile 8mm x 5mm x 2.5mm package. The RFLM-200802MA-299 is designed for optimal small signal insertion loss permitting extremely low receiver noise figure while simultaneously offering excellent large input signal Flat Leakage for effective receiver protection in the 20 MHz to 8 GHz frequency range. The limiter RF circuit characteristics provide outstanding passive receiver protection (always on) which protects against High Average Power up to 44 dBm, High Peak Power up to 51 dBm pulsed (pulse width = 1 usec, duty cycle = 0.1%), maintains low flat leakage to less than 20dBm (typical), and reduces Spike Leakage to less than 0.2 ergs.

Features:

SMT Limiter Module: 8mm x 5mm x 2.5mm
Frequency Range: 20 MHz to 8.0 GHz
Peak Power +51 dBm
High Average Power Handling: +44 dBm
Low Insertion Loss: <1.4 dB
Return Loss: >15 dB
Low Flat Leakage Power: <20 dBm
Low Spike Energy Leakage: <0.5 ergs
Ultra Fast Recovery Time: < 500 nsec
“Always On Protection”
- No external control lines or power supply required
RoHS Compliant

Part Number: RFLM-200802MA-299
Manufacturer: RFuW
Descriptions: Passive
Frequency Range Min: 20 MHz
Frequency Range Max: 8000 MHz
Peak Power: 126 W
Adjustable Power Limiting Threshold Max: 20 dBm
Insertion Loss Typ: 1.4 dB
Max Power Rating: 43 dBm
Package: SMT
Recovery Time: 500 ns
