Home>> Amplifier>> RFPA5552

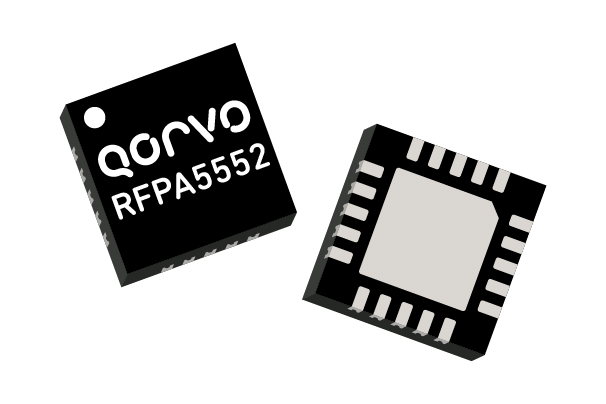

RFPA5552

Model Number: RFPA5552

Amplifier from Qorvo

Power Amplifier Module, 4.9 - 5.925 GHz, 24 dBM, 32 dB, QFN, 4 mm x 4 mm

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Qorvo's RFPA5552 is a three-stage power amplifier (PA) designed for Wi-Fi 802.11a/n/ac systems. The compact form factor and integrated matching minimizes layout area in the application and greatly reduces the number of external components. Performance is focused on optimizing the PA for a 3.3V supply voltage that conserves power consumption while maintaining the highest linear output power and leading edge throughput. A key feature is the integration of a logarithmic power detector which enables power control across the entire power spectrum for applications which use higher gain antennas or end users wanting to reduce device calibration time in production. The RFPA5552 integrates a 5GHz power amplifier (PA), regulator and power detector into a single device. The device is provided in 4mm x 4mm x 0.9mm, 20-pin QFN package.

Part Number: RFPA5552
Manufacturer: Qorvo
Type: Amplifiers
Frequency Min: 4.9 GHz
Frequency Max: 5.925 GHz
P1dB: 24 dBm
Gain: 32 dB

No Content Available

Technical Inquiry Request for RFPA5552 Amplifier

Fields marked with * are required.

Product Specifications For RFPA5552 Amplifier

Part Number: RFPA5552 Manufacturer: Qorvo Product Description: Power Amplifier Module, 4.9 - 5.925 GHz, 24 dBM, 32 dB, QFN, 4 mm x 4 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Pricing Available Upon Request. Request a Pricing Quote

Product Notices

No Current Notices
