RFPD3540

Model Number: RFPD3540

CATV Amplifier from Qorvo

Amplifier, CATV, 45 - 1218 MHz, 27 dB, 24V, SOT-115J, Power Doubler, GaAs/ GaN

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

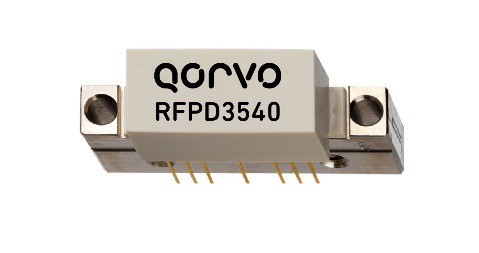

Qorvo's RFPD3540 is a Hybrid Power Doubler amplifier module. The part employs GaAs MesFET, GaAs pHemt die and GaN HEMT die, has high output capability, and operates from 45MHz to 1218MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability.

Part Number: RFPD3540
Manufacturer: Qorvo
Frequency Min: 50 MHz
Frequency Max: 1220 MHz
Gain: 29 dB
Supply Voltage\Vd: 24 V
Id: 435 mA
Noise Figure: 5.3 dB
CTB: -76 dB
Xmod: -70 dB
CSO: -80 dB
Package: SOT-115J

No Content Available

Technical Inquiry Request for RFPD3540 CATV Amplifier

Fields marked with * are required.

Product Specifications For RFPD3540 CATV Amplifier

Part Number: RFPD3540 Manufacturer: Qorvo Product Description: Amplifier, CATV, 45 - 1218 MHz, 27 dB, 24V, SOT-115J, Power Doubler, GaAs/ GaN

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$112.71

25 - 99

$96.26

100 - 249

$83.43

250 - 499

$72.20

500 - 999

$62.17

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
