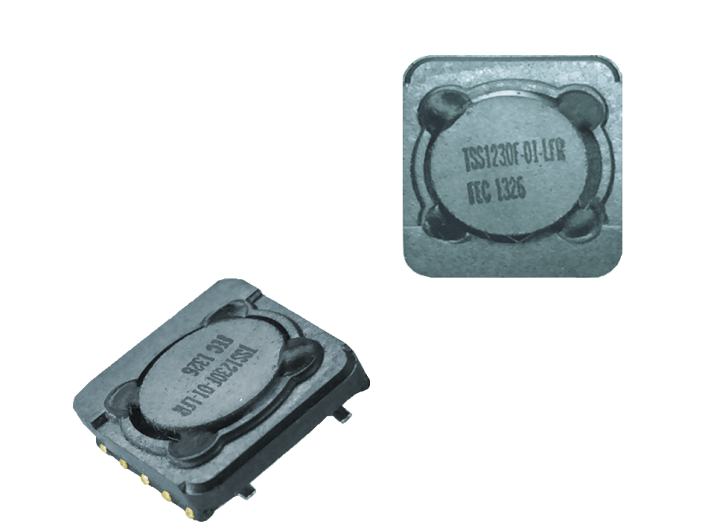

TSS1230F-01

RF Transformer from Frontier

Transformer, CCFL, Gold Plated

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The SMD Step-Up Switching Transformer TSS1230F-01 exhibits excellent output voltage capability, low input voltage and low profile construction (3 mm)

The small low profile construction makes the TS1230F-01 ideal for Handheld and Portable Radios, Mobile Credit Card Processor, Point of Sales Terminals, Radiation Monitors and Detectors, Coating Thickness Sensors, Cameras, Oscillators, Backlight Liquid Crystal Displays, Small Power Supplies.

Frequency range: 90 KHz to 800 KHz
Input voltage range: 1.5 VDC to 6 VDC
Output voltage range: 15 VAC to 300 VAC
Available with negative Voltage
Shielded
Output Power: 1 Watt
Gold plated terminal pads
Packaging: Tape & Reel
RoHS Compliant

Part Number: TSS1230F-01
Manufacturer: Frontier
Type: CCFL

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Technical Inquiry Request for TSS1230F-01 RF Transformer

Fields marked with * are required.

Product Specifications For TSS1230F-01 RF Transformer

Part Number: TSS1230F-01 Manufacturer: Frontier Electronics Product Description: Transformer, CCFL, Gold Plated
