Directional Coupler, 2 to 4 GHz, 30dB, 100 W

Status: Standard | Data Sheet:

| RoHS Compliance:

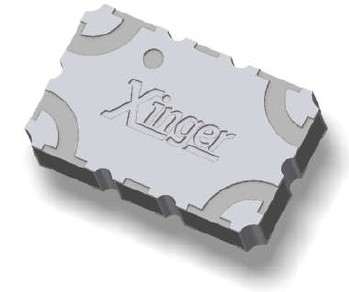

The X4C30F1-30S from TTM Technologies (formally Anaren Microwave) is a low-profile, high-performance 30dB directional coupler in a new easy to use, manufacturing-friendly surface mount package. It is designed for WIMAX and LTE band applications.

The X4C30F1-30S is designed particularly for power and frequency detection, as well as for VSWR monitoring, where tightly controlled coupling and low insertion loss are required. It can be used in high-power applications up to 100 Watts.

Parts have been subjected to rigorous qualification testing and they are manufactured using materials with coefficients of thermal expansion (CTE) compatible with common substrates such as FR4, G-10, RF-35, RO4003 and polyimide.

Produced with a RoHS-compliant tin immersion finish.

Samples and evaluation boards are available for qualified opportunities.
Please contact RFMW for further information.

Part Number: X4C30F1-30S
Manufacturer: TTM Technologies — Anaren
Type: Directional
Min Frequency: 2000 MHz
Max Frequency: 4000 MHz
Coupling Factor: 30 dB
CW Power: 100 W
Package Style: SMT
