Home>> Amplifier>> CMX90G701QF

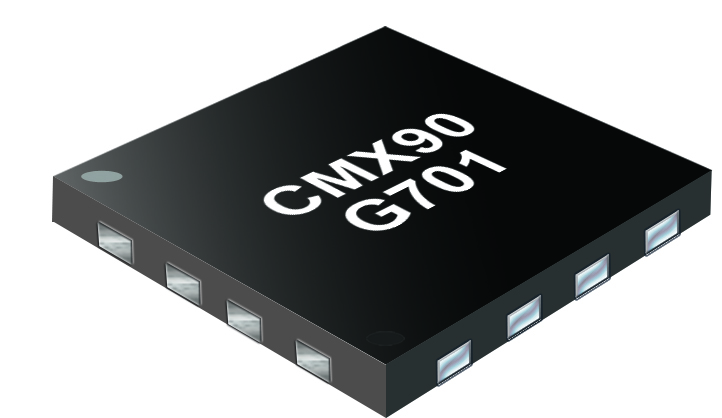

CMX90G701QF

SuRF RF from CML Microcircuits

RF Amplifier, Gain Block, GaAs, 6-16GHz, 10dBm, 1dB, QFN

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The CMX90G701 is a low-power 50 Ω gain block suitable for a wide variety of wireless applications operating in the 6 – 18 GHz frequency range.

The gain block has a positive gain-slope of +1dB across the 6 – 16 GHz band, eliminating the need for equalisation and compensates for increasing system losses with frequency.

CMX90G701 is highly integrated for ease of use, minimising external component count and board area. RF ports are matched on-chip to 50 Ω with an output DC-blocking capacitor. An active bias circuit with enable function, allows the device to operate over a wide supply voltage of 2 V to 5 V with typical current of 22 mA.

The device is fabricated using a GaAs pHEMT process to provide a combination of high linearity, low noise and low DC power consumption.

An alternative part, CMX90G702, is available for applications that require more gain-slope compensation.

Part Number: CMX90G701QF
Manufacturer: CML Microcircuits
Type: Amplifiers
Frequency Min: 6 GHz
Frequency Max: 18 GHz
P1dB: 10 dBm
Gain: 10.4 dB
IP3: 19 dBm
Supply Voltage \ Vd Min: 2 V
Supply Voltage \ Vd Max: 5 V
Quiescent Current \ Id: 22 mA
Package: QFN 3x3mm
Process: GaAs

No Content Available

Technical Inquiry Request for CMX90G701QF Amplifier

Fields marked with * are required.

Product Specifications For CMX90G701QF Amplifier

Part Number: CMX90G701QF Manufacturer: CML Microcircuits Product Description: RF Amplifier, Gain Block, GaAs, 6-16GHz, 10dBm, 1dB, QFN

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

400

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

10 - 99

$8.16

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
