ED2-0023

RF Antenna from ED2

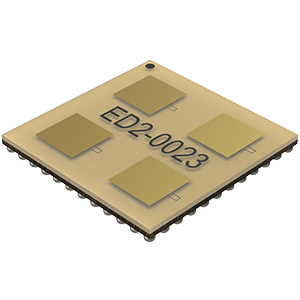

StingArray 28 GHz, 2 x 2 Integrated Phased Array Antenna Module

Status: Standard | Data Sheet:

| RoHS Compliance:

ED2’s StingArray™-series Phased Array Module (PAM) is a System-in-Package.

The StingArray™ PAM integrates 2 x 2 radiating elements with Renesas F5288 beamforming Half Duplex transceiver for n257 band applications.

The PAM minimizes loss and increases output power (EIRP +37dBm).

The core IC has highly flexible gain and phase control on each channel to achieve fine beam steering and gain compensation between radiating channels. The PAM includes a standard SPI protocol that operates up to 65MHz with fast beam switching and fast beam-state loading.

The StingArray StingArray™-series Phased Array Module (PAM) is an ideal solution for 5G Phased array antenna systems, enabling rapid prototyping and Simplifaction of implementation.

Part Number: ED2-0023
Manufacturer: ED2
Number of Bands: Multi
Type: Patch
