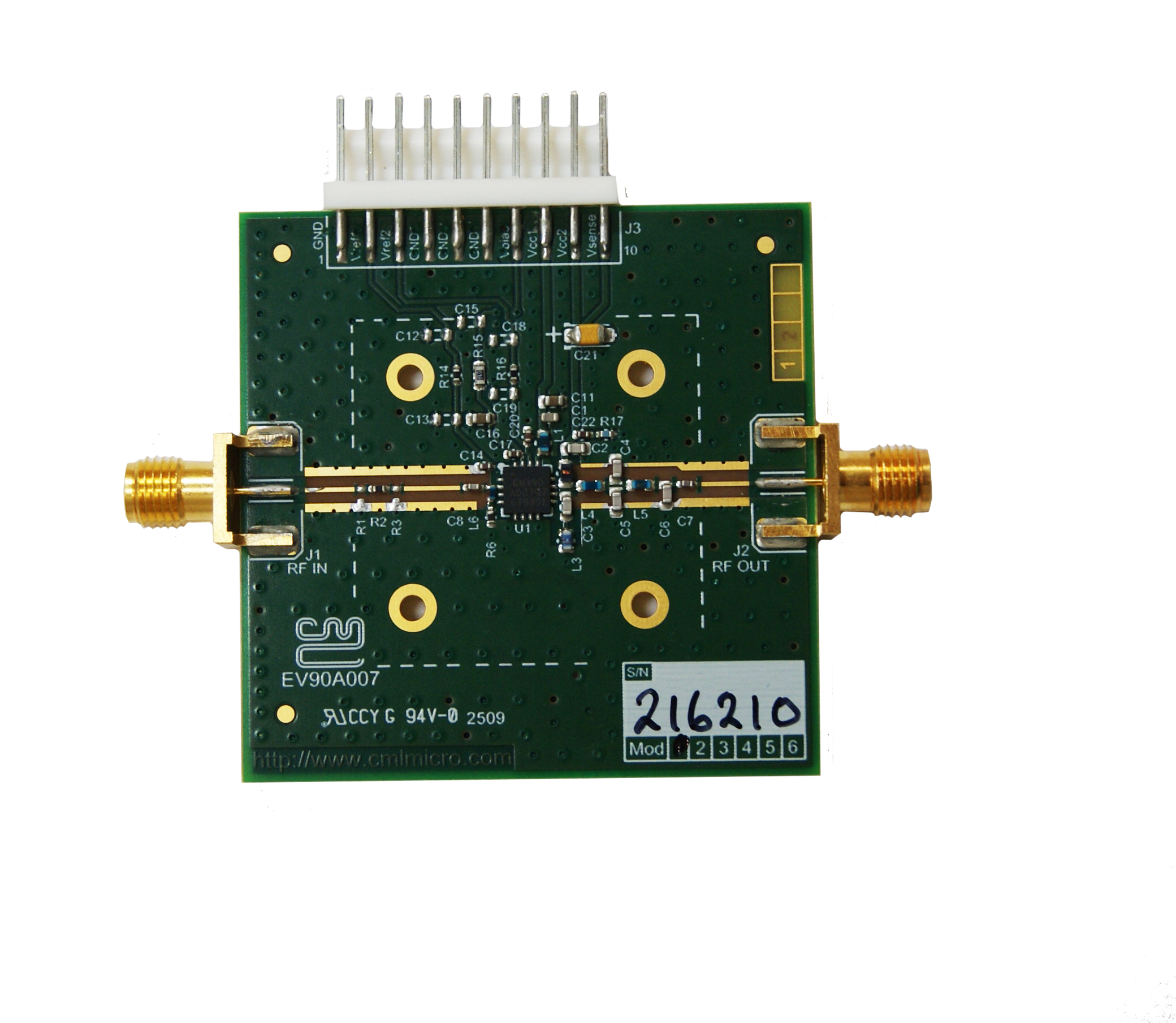

The EV90A007 is the evaluation board for CMX90A007, tuned for 400-470MHz.

The CMX90A007 is a high gain two-stage GaAs HBT driver amplifier in a plastic QFN package, delivering +33.5 dBm (2.2 W) of output power with >55 % efficiency at 435 MHz and 7.4 V.

CMX90A007 requires external matching at both input and output to optimize performance for each application and frequency band.

Wide supply voltage range of 6 – 9.5 V make it suitable for a variety of applications and enable direct connection to dual-cell Lithium batteries. The integrated active bias circuit and wideband interstage match ease design effort and minimize external components and PCB area.

CMX90A007 can be used as a stand-alone final stage PA or driver stage for the CMX90A009.

Features

PCB consists of four-layer FR-4 with a total thickness of 1.592mm
EV90A007 PCB measures 50mm x 50mm
Microstrip RF input and output width is 0.38mm

Part Number: EV90A007
Manufacturer: CML Microcircuits

No Content Available

Part Function	Part Number	Description
Evaluation Board	CMX90A007Q7 CML Microcircuits	Power Amplifier, 136 to 1000 MHz, 2W, 28 dB
